Optoma EH500 1080p 4700 Lumens 3D DLP Network Projector with HDMI

Optoma EH500, HD (1080p), 4700 ANSI Lumens, Full 3D Multimedia Projector

High Definition Impresses Audiences

The Optoma EH500 will make your presentations crystal clear in full high definition. Its powerful 4700 lumens bright output combined with an outstanding 10,000:1 contrast ratio delivers amazingly bright presentations with vibrant colors and sharp, clear text and graphics. Ideal for use in large screen applications where fine image detail is required.

The Optoma EH500 features an impressive array of connectivity options which include DisplayPort, two HDMI, two VGA, VGA Out, S-Video, composite video, 12V trigger, RS-232C, and RJ45. Crestron RoomView for over the network control and management of up to 250+ projectors. Perfect for large installations in business and educational environments.

At a Glance

• Native 1080p high-definition resolution for crystal clear presentations
• 4700 lumens bright output makes it ideal for use in large screen applications
• Full 3D compatibility for the most amazing immersive experience
• Over the network management and control capability makes it the perfect projector for large installations

State-of-the-Art DLP Technology

Projectors with Texas Instrument’s DLP with BrilliantColor technology feature multi-color processing to produce accurate and vibrant colors on the screen. The Optoma EH500 multi-color processing system features a six-segment color wheel coated with an advanced material that achieves superb color saturation and accuracy for extraordinary image quality. In addition, incredibly high native contrast ratios ensure clean and crisp black and white to ensure that text and charts are easy to read.

Lower Cost of Ownership

The projection lamp is rated to last up to 3500 hours in economy mode or 2500 hours in standard mode to provide long-lasting operation and optimal return on investment. The EH500 also incorporates a rapid shutdown feature that further reduces ownership costs.

Green by Design

The EH500 has been designed and manufactured to:

• Use less than one-watt power consumption in standby mode – Up to 75 percent savings compared to regular standby mode
• Limit energy use, with automatic shut down and remote management and control
• Employ long-life materials and components
• Use components that are lead-free on all printed circuit boards
• Use no polystyrene foam in the packing materials
• Comply with RoHS standards to phase out the use of hazardous materials

What’s in the Box?

This package includes the Optoma EH500, HD (1080p), 4700 ANSI Lumens, Full 3D Multimedia Projector, AC Power Cord, VGA to VGA Cable, Remote Control, Batteries for Remote, Carrying Case, Lens Cap, Multilingual CD-ROM User’s Manual and Quick Start Card.

Specifications:

Display Technology	Single 0.65″ DC2 DMD DLP Technology by Texas Instruments	Native Resolution	HD (1920 x 1080)
Brightness	4700 ANSI Lumens	Maximum Resolution	WUXGA 1920 x 1200
Lamp Life	3500/2500 Hours (STD/Bright)	Contrast Ratio	10,000:1 (Full On/Full Off)
Displayable Colors	1.07 Billion	Projection Method	Front, Rear, Ceiling Mount, Table Top

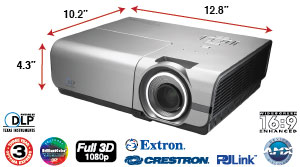

Keystone Correction	±15° Vertical	Dimensions	12.8″ x 4.3″ x 10.6″
Offset	115%	Aspect Ratio	16:9 Native, 4:3 Compatible
Throw Ratio	1.59-1.91:1 (Distance/Width)	Image Size (Diagonal)	23.6″-300″ (0.6-7.62 m)
Projection Lens	F=2.5-2.76, f=23.5-28.2 mm, 1.2x Manual Zoom and Focus	Projection Distance	3.28′-32.8′ (1.0-10 m)
Audio	3-Watt Speaker	Remote Control	IR Remote Mouse Control
Noise Level	26dB	Power Supply	AC Input 100-240V, 50-60Hz, Auto-Switching
Operating Temperature	41-104°F (5-40°C), 85% Max Humidity	UPC Code	796435 41 865 6
Power Consumption	Preliminary 380W (Bright), 320W (STD), <1W (Standby)	Computer Compatibility	HD, WUXGA, UXGA, WXGA, SXGA+, SXGA, XGA, SVGA, VGA Resized, VESA, PC & Mac Compatible
Horizontal Scan Rate	15, 31-90KHz	Vertical Scan Rate	50-85Hz, 120Hz, 144Hz
Video Input Compatibility	NTSC, PAL, SECAM, SDTV (480i), EDTV (480p), HDTV (720p, 1080i/p)	3D Compatibility	Supports all HDMI 1.4a mandatory 3D format, side-by-side format and top and bottom format. 3D glasses are needed and sold separately.
Loop Through	Monitor: D-Sub 15 pin VGA output Audio-out: Stereo 3.5 mm mini-jack (functional in both normal and standby modes)	Security	Kensington Lock Port, security bar and keypad lock

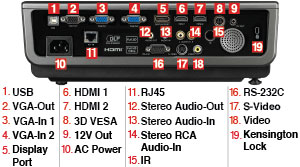

User Controls	Complete on-screen menu, adjustments in 23 languages	I/O Connectors	Display port, Two HDMI, Two VGA-in, VGA-out, S-video, composite video, stereo RCA, audio-in, stereo audio-out, RS-232C, RJ45, 3D-sync, USB and 12V trigger
Optional Accessories	Ceiling Mount, RF 3D Glasses, RF 3D Emitter and Optoma Screens	Warranty	3-Year Optoma Express Service, 1-Year on Lamp

Which Optoma HD (1080p) Projector Is Right For You?

Model	DH1011	EH300	EH500 (Currently Selected)
Brightness	3000 ANSI Lumens	3500 ANSI Lumens	4700 ANSI Lumens
Native Resolution	HD (1920 x 1080)	HD (1920 x 1080)	HD (1920 x 1080)
Contrast Ratio	13,000:1 (Full On/Full Off)	15,000:1 (Full On/Full Off)	10,000:1 (Full On/Full Off)
Lamp Life	5000/4000/3000 Hours (ECO+/ECO/Bright)	6000/5000/3500 Hours (ECO+/ECO/Bright)	3500/2500 Hours (STD/Bright)
Projection Distance	3.9′-32.8′ (1.5-10 m)	3.9′-32.8′ (1.5-10 m)	3.28′-32.8′ (1.0-10m)
Image Size (Diagonal)	37.6″-301.1″ (0.92-9.21m)	37.6″-301.1″ (0.7-7.62 m)	23.6″-300″ (0.6-7.62 m)
Aspect Ratio	16:9 Native, 4:3 compatible	16:9 Native, 4:3 compatible	16:9 Native, 4:3 compatible
Displayable Colors	1.07 Billion	1.07 Billion	1.07 Billion
Display Technology	Single 0.65″ DC3 DMD DLP Technology by Texas Instruments	Single 0.65″ DC3 DMD DLP Technology by Texas Instruments	Single 0.65″ DC2 DMD Chip DLP Technology by Texas Instruments
I/O Connection Ports	Two HDMI v1.4a, two VGA-in, VGA-out, 3D VESA Port, composite video, two audio-in, audio-out, RS-232C, USB-B	Two HDMI v1.4a, two VGA-in, VGA-out, 3D VESA Port, composite video, two audio-in, audio-out, RS-232C, USB-B	Display port, Two HDMI, Two VGA-in, VGA-out, S-video, composite video, stereo RCA, audio-in, stereo audio-out, RS-232C, RJ45, 3D-sync, USB and 12V trigger
3D Compatibility	Supports all HDMI 1.4a mandatory 3D format, side-by-side format and top and bottom format; 3D-glasses are needed and sold separately	Supports all HDMI 1.4a mandatory 3D format, side-by-side format and top and bottom format; 3D-glasses are needed and sold separately	Supports all HDMI 1.4a mandatory 3D format, side-by-side format and top and bottom format; 3D-glasses are needed and sold separately

Projection Distance / Image Size

Projection Distance	Minimum Diagonal	Maximum Diagonal
3.9′-32.8′ (1.5-10 m)	37.6″	301.1″

Want to Enhance Your Experience with Optional Accessories?

Picture	Model	Description
	BG-ZD301	DLP Link, Active Shutter 3D-Glasses
	BG-ZF2100GLS	Active Shutter 3D-RF Glasses
	BG-BC100B	3D-RF Emitter
	BI-EXTBG03	Wireless VGA Dongle
	BM-5001U	Mount

Looking for Replacement Parts/Accessories?

Picture	Model	Description
	BL-FU310B	Lamp
	BR-3070L	Remote
	BK-4013	Carrying Case
